Electromagnetic Flowmeter Electio: A Guide Proven (Liners, Electrodes, Conductivity)

Quis hoc est?

Plantae fabrum, processus designator *es, iunctiones sustentationis, et emptores technici, qui ieiunium, certa ratione indigent ut magmetrum rectum pro realibus mundi conditionibus definiant.

1) Quid est Magmeter (et Estne)

Flometers electromagneticorum metimur conductive liquores nullum elementum throttling et nulla movere partes . Praestant in abrasivis et corrosivis servitiis et dominantur aquae municipalis & vastitatis, chemicae translationis, fodiendi sluriae, ac processibus hygienicis (cibus & potum, pharma).

• Vires: exiguus pressionis damnum, late DN range, stabilis accuratio, optimae optiones chemica/abrasiones.
• Limites: minimum conductivity require; non hydrocarbonum / ultra pura aqua, nisi utens humilis conductivity designs.

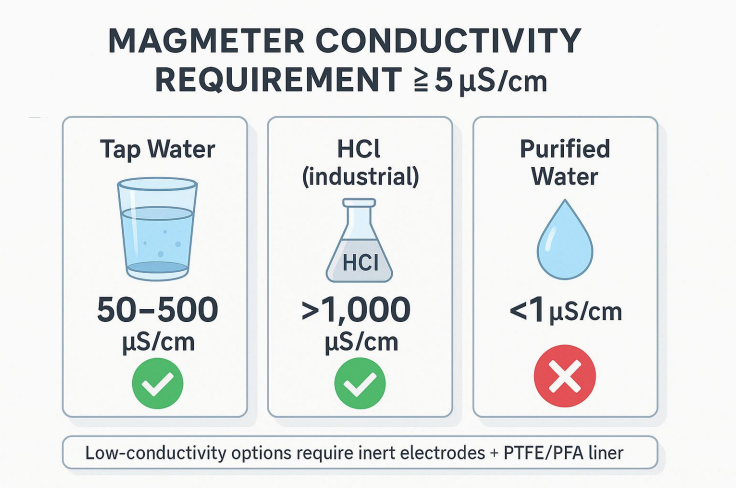

Conductivity Limen (μS/cm)

Vexillum magmetri ≥ . require 5 μS/cm . Typical references: Tap aqua: 50-500, HCl (industrialis): >1,000, aqua mundata: <1 → non conveniens.

Borderline casibus uti potest iners electrodes (Pt‑Ir/Hastelloy C) cum low-adsorption liners (PTFE / PFA) ; confirmamus fabrica.

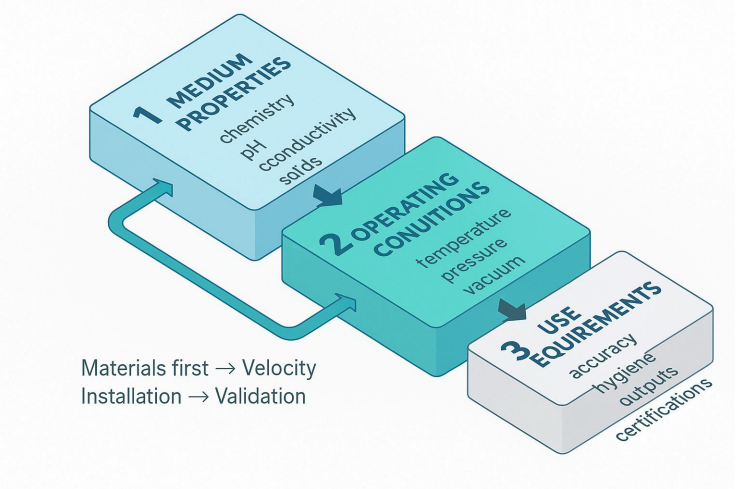

II) In 3‑D Electio Model

Electio non est modulus unus. Utere a 3‑ decisio dimensiva;

Medium Properties → Operating Conditions → usus Requirements

Pleraque defecta (incursus lineri, defectus electrodis, magnae errores) reducere ad incompletas medias notitias vel materias inaequales.

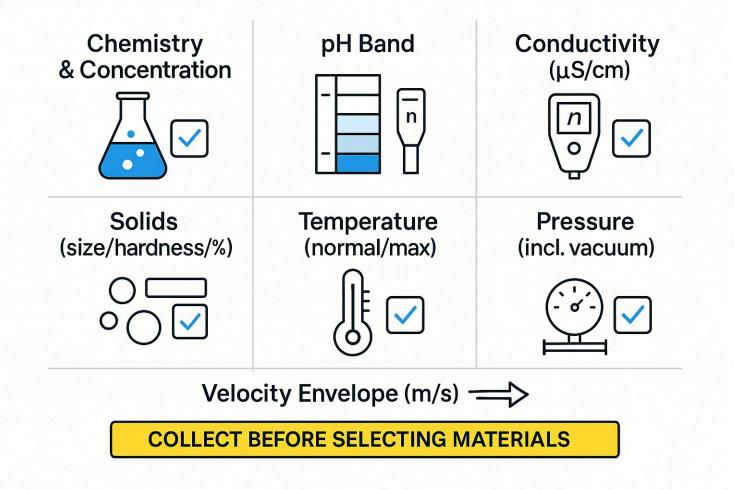

III) Gradus I - Medium Profile (non FACILIS Data)

Colligunt hoc ante materiae eligens:

• Chemiae & conducit: vestigium includendi iones (F⁻/Cl⁻) et oxidizers.
• pH cohortis; validum acidum (<2), acidum debile (2-6), neutrum (6-8), alcali infirmum (8-12), alcali validum (>12).
• Conductivity: confirmare ≥ 5 μS/cm nisi uti humilis-conductivity optiones.
• solidorum: magnitudo / duritia / volumen %. Vicus vel ≥1 mm → abrasio-repugnans liners.
• Temperature: normalia et extrema (CIP/SIP, sun-heated runs).
• Pressura: positivum et vacuum (Liners potest collapse nisi rated).
• Velocitas involucrum; consilium 1-3 m/s (Mundum ministerium). <0.5 m/s deponit; >5 m/s exesa / sonitus (ministerium laesura saepe 2-4 m/s).

IV) Gradus II - Elige liner (Corrosion & Temperature Primum)

Prior: Corrosio resistentia → Calor → Abrasio → Pressio.

Vacuum & scelerisque cycling

specificare vacuum‑rated liners si sub‑atmosphaerica pressura potest. Pro magna ΔT/ΔT·h, invigilare liner/electrode CTE compatibilitate et observare producti. T-P curva rating.

V) Gradus III - Match Electrodes Chemiae (et Liner)

Velox cues

• Bleach (NaOCl) → PTFE/PFA Hastelloy C / Titanium.
• HCl sine F⁻ → PTFE/PFA Tantalum / Hastelloy C.
• HCl cum F⁻ → PTFE/PFA Hastelloy C / Pt‑Ir (devitare Ta).
• Hot/strong NaOH → PTFE/PFA Hastelloy C (316L solum ad lenia/frigida adurentia).
• Abrasive slurry → Polyurethane / Ceramic liner robusti electrodes; magnitudine for 2-4m/s .

6) Velocitas pro magnitudine (non enim Iacta Pressura)

Magmeters contemptibile capitis detrimentum addunt. Magnitudine meter sic normalis operating velocitas terras in scopum cohortis.

• Puri liquores: 1-3m/s (quies, stabilis, humilis desultorius).
• Abrasive: 2-4m/s ad purum; pileo cacumina ad modum exesa.
• Humilis conductivity: superior velocitas modeste emendare potest SNR.
• Valde humilis fluit; consider downsizing (Reducers) ad scopum pervenire velocitatis.

Unum-minute inspectionem exempli

Datum 20m³/h anno DN50 (ID ≈ 52.5mm);

Area A = π·(0.0525²)/4 ≈ 0.00217m² → v = Q/A = 20/3600 / 0.0217 ≈ . 2.56m/s → cohortis sub abrasive ; pro meritis mundis considera DN65.

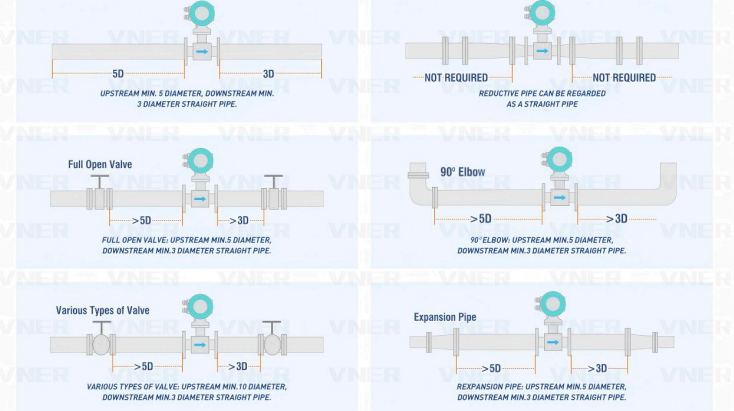

VII) Install signum qualitas

• Recta fugit; 5-10D flumine, 2-3D amni (magis post cubita/valvulae/reducers).
• propensio: horizontalem cum electrodes hora 3 & 9; verticalis up-flow praelatus.
• Serva tibia plena; da vacua tibia deprehendatur; entrained caeli vitare.
• Grounding: grounding anulos / electrodes ad stabulum referat.
• Gaskets & manicas: liner‑ compatible; intrusionem vitare in pertundere.
• Media: Malo lenis liners (PTFE / PFA) et velocitate proper

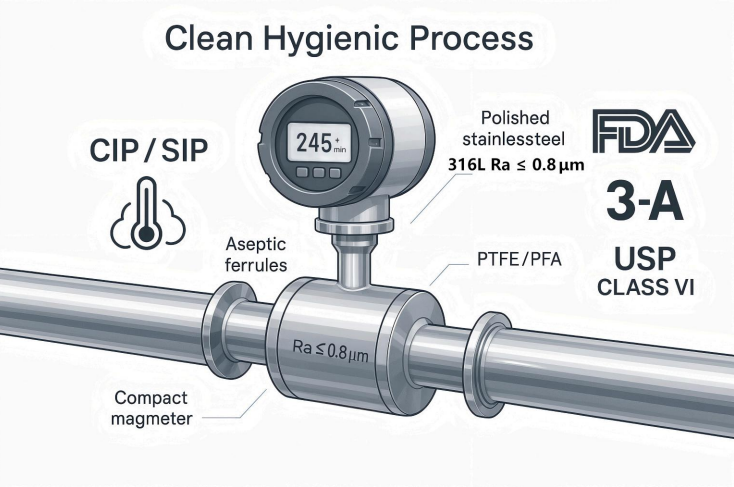

8) Sanitary (Food & Pharma)

• Partes madefactae: 316L; PTFE/PFA liners; polito electrodes (exampla Ra ≤ 0.8μm ; specificare ≤ 0.4μm si opus fuerit).
• hospites: Tri‑Clamp, DIN11851, aseptic ferrules; superficiem definire metam.
• CIP/SIP: quin fines purgat et vapor (tempus / temperatus).
• Obsequium: FDA/3‑A/USP ClassVI/material traceability; inconsutilem liner designs ne hold-up.

IX) Velox Electio Matrix (Satus - cognoscere datasheet)

• Aquae municipales / wastewater → Liner : Purgamentum / ETFE / PTFE; Electrode: 316L (Upgrade ad HastelloyC ad oxidizers fortis).
• 30% HCl (chemical) → PTFE/PFA HastelloyB/C / Tantalum (do not uti 316L).
• 20% NaOH (chemical) → FEP/PTFE HastelloyC (316L de
• Neutrum slurry fodienda → Polyurethane or Ceramic durum metallum electrodes ; 2-4m/s ; perpendiculum install.
• Acidum sanguisuga slurry → Ceramic Tantalum (monitor pH; devita F⁻ cum Ta).
• Organicum wastewater industriae (exampla, ethanol) → FEP/PTFE HastelloyC ; explosionem confirmare tutelam.
• platea dosing → PTFE/PFA HastelloyC/Titanium.
• Hot boiler makeup (100-150 °C) → PFA/Ceramic Titanium ; Insulate; ut humilis resistentia.
• Muria frigida (CaCl₂, −20…5 °C) → PTFE/FEP Titanium ; confirmare humilis temperatus liner spissitudo

X) Priusquam emisti Validate (devita pretiosi surprises)

• Materiae convenientiae: sisto corrosio data in retrahitur & temperatura actualis (scopum ≤ 0.1mm/annum).
• Temperatus-pressura curvae: respect liner derating (exempli causa PTFE pressionis limitis ad elevatum T).
• Condiciones speciales: vacuum ratings; scelerisque cycling (ΔT/h); liner / electrode par CTE.
• Venditor sign‑off: providere completum medium / condiciones; peto a * idoneitatem fama . Ad puncta critica, do immersionem probat (e.g.,72 h electrode inebriat).

XI) Cautiones communes & Fixes (cum prouentuum)

• Vestigium immunditiae ignorans (exampla, F⁻ in HCl) → iniuria subauratio ; celeri defectu.
  Figere: plenae compositionis incl. vestigium ions; eligere Ta/Hastelloy C/Pt‑Ir ut opus fuerit.

• Under‑rating temperatus / pressura → liner canus vel tumes.
  Figere: eligere in extremis (exampla max T 10 °C, max P 20% ); sequitur curva T-P.
• Underestimating abrasione Celeri liner → slurries gerunt.
  Figere: Polyurethane/Ceramic liners, recta velocitas / propensionis.
• Buying on lowest price → crebra mutationis ; princeps downtime.
  Figere: evaluate lifecycle pretium (Capex V annos sustentationem).

• Absentis sanitate singula → custodia et contagione periculum.
  Figere: inconsutilem liners, politum electrodes, documentum obsequium.

12) RFQ.

1. Medium & conducit; PH, conductivity (μS/cm)
2. Solida: magnitudo / durities / % vol. (si)
3. Fluor range (min/normalis/max), accurate scopum, malle velocitatem band
4. Temperature (normalis/max), Impetus (max, any vacuum )
5. Pipe size / standard / material, recta currunt disponibilitate, orientatio
6. Power & outputs (4-20mA/HART, pulse, RS‑485), IP/ex-probatio
7. Hygienicae necessitates (finis superficiei, nexus, CIP/SIP)
8. Documenta (calibratio, MTRs) & certificationes regionales

13) FAQ'

Q1. Possuntne magmetri metire ultra aquam puram?

Tantum cum humilis conductivity consiliorum et diligentium sanatio. Vexillum unitates require ≥ 5μS/cm.

Q2. Quid si vacuum vel rapidum oscillantem Videt acies mea?

Usus vacuum‑rated liners deprime CTE matching /ΔT fines.

Q3. Quoties calibrate debeo?

Officium typicum: annuatim . Critica custodia / dosing: VI menses vel per consilium situm.

Q4. Quomodo extenuo in slurriis gestamus?

Colligunt abrasione repugnans liners (Polyurethane/Ceramic), keep 2-4m/s velocitas, vertical up‑flow.

Conclusio (De Ordine Operum)

1. materiae primum (Electrodes liner) ex media perfecta profile.
2. Magnitudine velocitatis (non pressura stilla).
3. Install qualis est signum Recta currit, fistula plena, fundatio.
4. Validate contra T-P curvam, vacuum, et cyclum thermarum.

Sequens hic ordo electionem magmetrum vertit in processum ipsum iterabilem, qui accurate tradit et sumptus lifecycli demittit.
